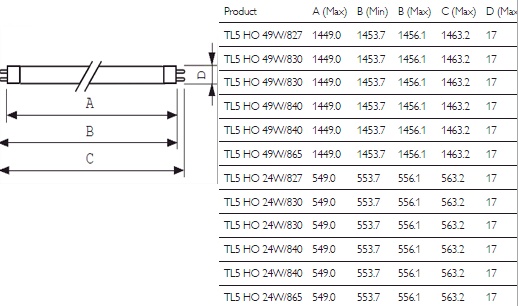

• Dimensions in mm.
Lamp length without pins 1449.0 (max) mm
Insertion depth B 1453.7 (min), 1456.1 (max) mm
Total length C 1463.2 (max) mm
Lamp diameter D 17 (max) mm
• Product data
Order code 643124 55
EOC product code 871150064312455

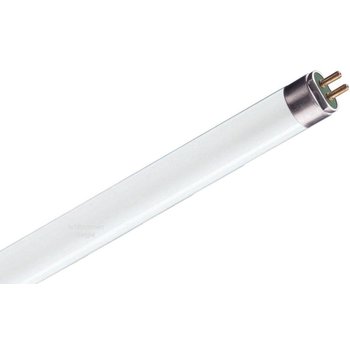

Product name MASTER TL5 HO 49W / 827 1SL
Order product name MASTER TL5 HO 49W / 827 1SL / 40
Number per package 1
Pack quantity 40
Packings per outer box 40
Barcode on product 8711500643124
Barcode on outer box 8711500867704
Logistical code (s) 927927582755
ILCOS code FDH-49/27 / 1B-L / P-G5-16 / 1450
Net weight per piece 128,700 gr
• General characteristics
Lamp foot G5
Lamp shape T5 [16 mm]

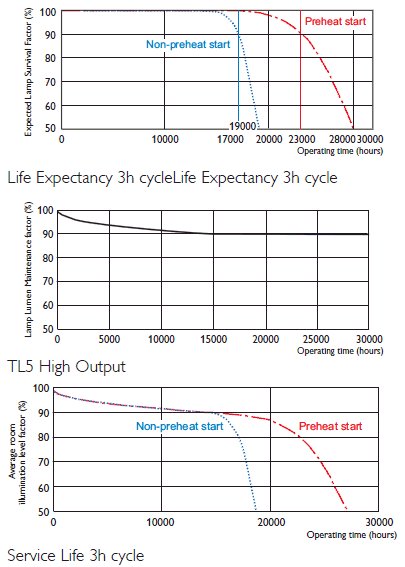

Lifetime 50% failure EVSA 24000 hr
Living. 10%. warm EL, 3h 19000 hr
LSF HF prewa 20kh v spec, 3h 85%
LSF HFforrww 16kh vlg spec, 3h 94%
LSF HF preload 12kh v spec, 3h 95%
LSF HF voorvrw 8kh vlg spec, 3h 97%
LSF HF voorvrw 6kh vlg spec, 3h 98%
LSF HF voorvrw 4kh vlg spec, 3h 98%
LSF HF voorvrw 2kh vlg spec, 3h 99%
• Technical Light characteristics
Color code 827 [CCT or 2700K]
Color rendering 85 Ra8
Light color Light bulb white
Color temperature 2700 K
Chromaticity coordinate X 469 -
Chromaticity coordinate Y419 -
Luminous flux lamp EVSA 35 ° C 4900 Lm
Luminous efficacy according to specification HF 25 ° C 88 Lm / W
Luminous efficacy according to HF 35 ° C 99 Lm / W
Lm-beh.fact HF 20kh according to specs 88%
Lm-beh.fact HF 16kh according to specs 90%
Lm-beh.fact HF 12kh according to specs 91%
Lm-beh.fact HF 8kh according to specs 93%
Lm-beh.fact HF 6kh according to specs 94%
Lm-beh.fact HF 4kh according to specs 95%
Lm-beh.fact HF 2kh according to specs 96%
Lightstrm EL 25 ° C, according to specs 4375 Lm
Luminous flux EL 25 ° C, nominal 4375 Lm

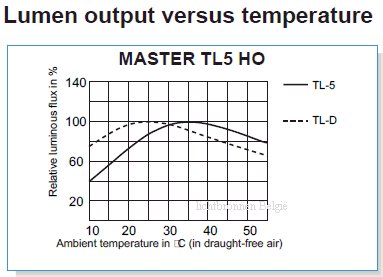

Design temperature 35 C

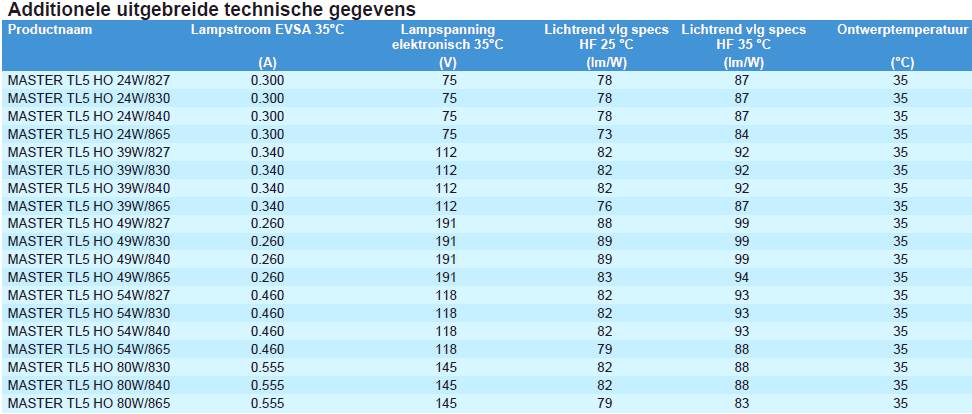

• Electrical characteristics
Nominal lamp power 49 W
Lamp voltage electronic 25 ° C 195 V
Lamp current EVSA 25 ° C 0.255 A
Dimmable / Adjustable Yes
Lamp capacity EL 35 ° C 49.3 W
Lamp current EVSA 35 ° C 0.260 A
Lamp voltage electronically 35 ° C 191 V
Lampverm EL 25 ° C, according to specifications 49.7 W
Lampverm EL 25 ° C, nominal 49 W
