• Dimensions in mm.
Lamp length without pins 1449.0 (max) mm
Insertion depth B 1453.7 (min), 1456.1 (max) mm
Total length C 1463.2 (max) mm
Bulb diameter D 17 (max) mm
• Product data
Order code 639547 55
EOC product code 871150063954755
Product name MASTER TL5 HO 49W/830 1SL
Order product name MASTER TL5 HO 49W/830 1SL/40
Quantity per package 1
Packing quantity 40
Packs per outer box 40
Barcode on product 8711500639547
Barcode on outer box 8711500867711
Logistics code(s) 927927583055
ILCOS code FDH-49/30/1B-L/P-G5-16/1450
Net weight per piece 128,700 gr
• Product data
Order code 637529 55
EOC product code 871150063752955
Product name MASTER TL5 HO 49W/830 UNP
Order product name MASTER TL5 HO 49W/830 UNP/40
Quantity per package 1
Packing quantity 40
Packs per outer box 40
Barcode on product 87115006 37529
Barcode on outer box 8711500637536
Logistics code(s) 927927583018
ILCOS code FDH-49/30/1B-L/P-G5-16/1450
Net weight per piece 128,700 gr
• General characteristics
Lamp base G5
Lamp shape T5 [16 mm]

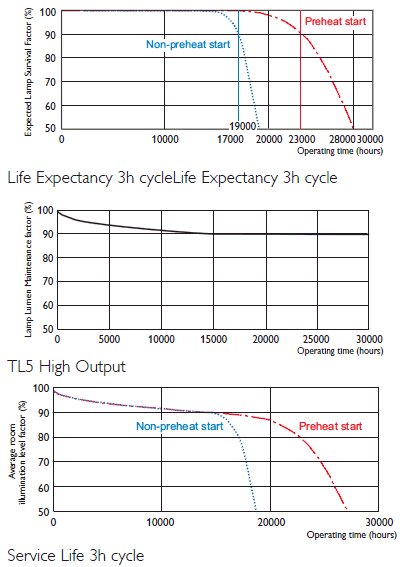

Lifetime 50% failure Ballast 24000 hr
alive. 10% ex. warm EL,3h 19000 hr
LSF HF preheat 20kh v spec,3h 85 %
LSF HFvoorvrw 16kh acc spec,3h 94 %
LSF HF preheat 12kh v spec, 3h 95 %
LSF HF prevrw 8kh acc spec,3h 97 %
LSF HF prevrw 6kh acc spec, 3h 98 %
LSF HF prevrw 4kh acc spec,3h 98 %
LSF HF prevrw 2kh acc spec, 3h 99 %
• Technical Light Properties
Color code 830 [CCT or 3000K]
Color rendering 85 Ra8
Light color Warm White
Color temperature 3000 K
Chromaticity coordinate X 444 -
Chromaticity coordinate Y 409 -
Luminous flux lamp ballast 35°C 4900 Lm
Luminous efficiency according to specs HF 25 °C 89 Lm/W
Luminous efficiency according to specs HF 35 °C 99 Lm/W
Lm-beh.fact HF 20kh acc. specs 88%
Lm-beh.fact HF 16kh according to specs 90%
Lm-beh.fact HF 12kh acc. specs 91%
Lm-beh.fact HF 8kh according to specs 93%
Lm-beh.fact HF 6kh according to specs 94%
Lm-beh.fact HF 4kh according to specs 95%
Lm-beh.fact HF 2kh according to specs 96 %
Luminous flux EL 25 °C, according to specs 4375 Lm
Luminous flux EL 25 °C, nominal 4375 Lm
Design temperature 35 C
• Electrical characteristics
Rated lamp power 49 W
Lamp voltage electronic 25°C 195 V
Lamp current ballast 25°C 0.255 A
Dimmable/Adjustable Yes
Lamp power EL 35 °C 49.3 W
Lamp current ballast 35°C 0.260 A
Lamp voltage electronic 35°C 191 V
Lamp power EL 25 °C, according to specs 49.2 W
Lamp power EL 25 °C, nominal 49 W
