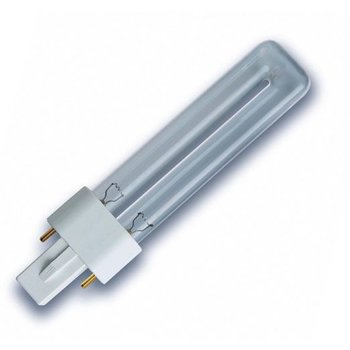

Osram TUV HNS S 9W G23

OSRAM TUV HNS S 9W for killing or inactivating bacteria, algae, viruses and other primitive organisms air, water and surface disinfection. UV lamp for the pond.
EAN code:
4050300941226
Availability:
In stock
Delivery time:
1-2 working days
product-banner
Buy 2 for €9,75 each and save 2%
Buy 10 for €9,65 each and save 3%
€9,95
Excl. tax

(€12,04 Incl. tax)
Characteristics:
  • short wave UV radiation with a peak at 253.7 (UV-C) for sterilization effect
  • lamp glass OSRAM TUV HNS S 9W G23 filters out 185 nm ozone-forming line
  • protective internal coating limits the drop in value of useful UV-C
  • OSRAM TUV HNS S 9W G23 can be used on average 8000 hours , after which the intensity decreases
Applications:
  • UV lamp pond for algae killing (floating algae). UV lamp pond
  • killing or inactivating bacteria, viruses and other primitive organisms
  • air, water and surface disinfection in hospitals, bacteriological research and pharmaceutical environments, and in the food industry, such as dairies, breweries and bakeries
  • disinfection of drinking water, sewage water, swimming pool water, water of air-conditioning systems, freezer storage facility, etc.
  • used in various photochemical processes

Electrical data

Nominal wattage 9.00 W
Nominal voltage 60.0 V.
Construction voltage 60.00 V.
Nominal current 0.18 A
Lamp current 0.18 A

Photometrical data

Radiated power 200… 280 nm (UVC) 2.5 W.

Dimensions & weight

Diameter 28.0 mm
Length 165.5 mm

Additional product data

Base (standard designation) G23
Product remark UV irradiance 253.7 nm measured at a distance of 1 m at mid-lamp level, at 20 ° C ambient temperature, free-burning. Between 0.3… 3.0 m, the irradiance is inversely proportional to the square of the distance

Capabilities

Burning position s180
Fitting: -
Life (hours): -
