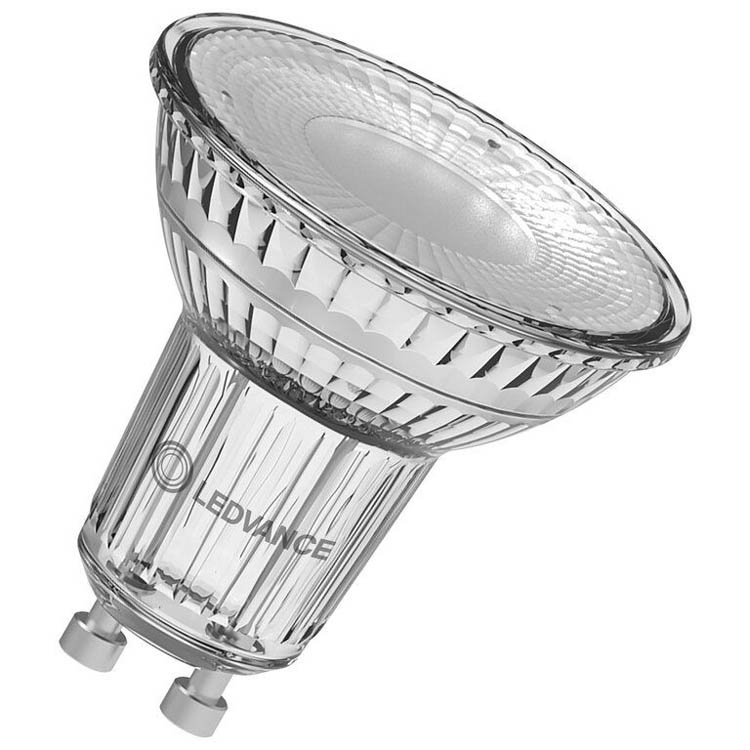

LEDVANCE (Osram) Performance Class Par16 8.3-80W/927 GU10 60D dimmable Ra9

Electrical specifications

Nominal power 8.30 W

Nominal voltage 220…240 V
Comparable wattage lamp 80 W
Max. number of lamps on current od 10 A (B) 167
Max. lamp no. on circuit break. 16 A (B) 267
Operating frequency 50/60 Hz
Labor factor λ 0.70
Photometric data
Nominal luminous flux 575 lm
Luminous flux 575 lm
Luminous flux end of nominal life 0.70
Light color Warm White
Color temperature 2700 K
Luminous flux 575 lm
Color Rendering Index Ra 90
Standard deviation of color tests ≤5 sdcm
Nominal color temperature 2700 K

Lighting specifications
Beam angle 60°
Warm-up time (60%) < 0.50 s
Startup time < 0.5 s
Nominal radiation angle 60°
Nominal extension angle (half-value angle) 60.00 D
Dimensions
Total length 52.0 mm
Diameter 50.0 mm
Outer shell PAR51
Length 52.0 mm
Maximum diameter 50.0 mm
Temperatures and operating conditions
Ambient temperature range -20…+40 DC
Maximum temperature at Tc test point 115 DC
Lifespan
Nominal lamp lifespan 25,000 h
Average lifespan of the lamp 25,000 h
Number of switching cycles 100,000
Additional product data
GU10 lamp base
Mercury content 0.0 mg
Mercury-free Yes
Proper disposal according to legislation Yes
