Electrical data
|
Nominal wattage |
7.10 W |
|
rated wattage |
7.10 W |
|
Rated luminous flux |
402lm |
Photometric data
|
Nominal luminous flux |
400lm |
|
Color temp |
2700K |
|
Light colour |
827 |
|
Light color (designation) |
LUMILUX INTERNA |
|
Color rendering index Ra |
80…89 |
|
Luminous flux at 25 °C |
400lm |
|
Rated LLMF at 4,000 h |
0.80 |
|
Rated LLMF at 6,000 h |
0.77 |
|
Rated LLMF at 8,000 h |
0.75 |
|
Luminance |
2.6 cd/cm² |
|
Color rendering group |
1B |
|
Rated LLMF at 2,000 h |
0.85 |

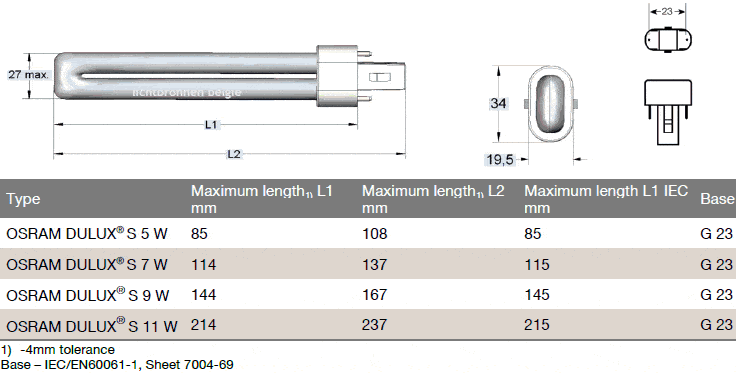

Dimensions & weight
|
Overall length |
137.0mm |
|
Product weight |
25.00 g |
|
tube diameter |
12mm |
|
length |
137.0mm |
|
Length acc. to IEC standard |
115mm |
|
Length with base excl. base pins/connection |
114.00mm |
temperatures
|
Rated ambient temp.w.max.luminous flux |
25.0 °C |
lifespan
|
Nominal lamp life |
10000 h |
|
Rated lamp life |
10000 h |
|
service life |
6500 h |
|
Rated lamp survival factor at 2,000 h |
0.99 |
|
Rated lamp survival factor at 4,000 h |
0.99 |
|
Rated lamp survival factor at 6,000 h |
0.95 |
|
Rated lamp survival factor at 8,000 h |
0.81 |
|
Operation mode LLMF/LSF |
50 Hz |
|
lifespan |
Additional product data
|
Base (standard designation) |
G23 |
|
Lamp mercury content |
1.4mg |
|
Appropriate disposal acc. to WEEE |
Yes |
Capabilities
|
Suitable for indoor |
Yes |
Certificates & standards
|
Energy efficiency class |
B |
|
energy consumption |
10 kWh/1000h |
Country-specific categorizations
|
ILCOS |
FSD-7/827-I-G23 |
