Dim lights

Can you dim Philips MASTER LED lamps?
Yes. But then there should be used a so-called phase cutting dimmer. Please note that the capacity of the dimmer determines the number of lights to dim. Rule of thumb is that 10% of the maximum power of the dimmer can be used for the number of lights to dim. Example: phase cutting dimmer has an output of up to 500W.. The math is: 500 W: 10 = 50 W. It can thus up to 9 MASTER LED spot 5,5-50W LED lights are connected to this dimmer.

MASTER LED lamps 230V
Philips MASTER LED lamps that burn mains can work well with most R and RL dimmers (phase cutting dimmers), but not with RC and RLC dimmers (leading-edge dimmers) Note: the ability of the dimmer determine the number of lights to dim. Rule of thumb is that 10% of the maximum power of the dimmer can be used for the number of lights to dim. Example: phase cutting dimmer has a maximum power of 500 W. The math is: 500 W: 10 = 50 W. It can thus up to 9 MASTER LED spot 5,5-50W LED lights are connected to this dimmer.

MASTER LED lights 12V

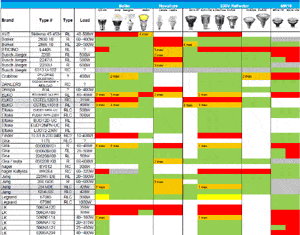

Dimmer List Philips Master LED lamps. Complete dimmer list for the Philips Master LED lamps. Also, the recommended number of LED lamps per dimmer. Based on test results, Philips recommends the following dimmers for the MASTER LED lamps burning at low voltage:

Dimmerlijst Philips LED LAMPEN Dimmer List
