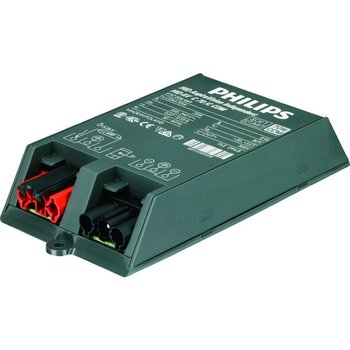

General features
|
Specified lamp type |
CDM |
|
Number of lamps acc. specs. |
1 piece |
|

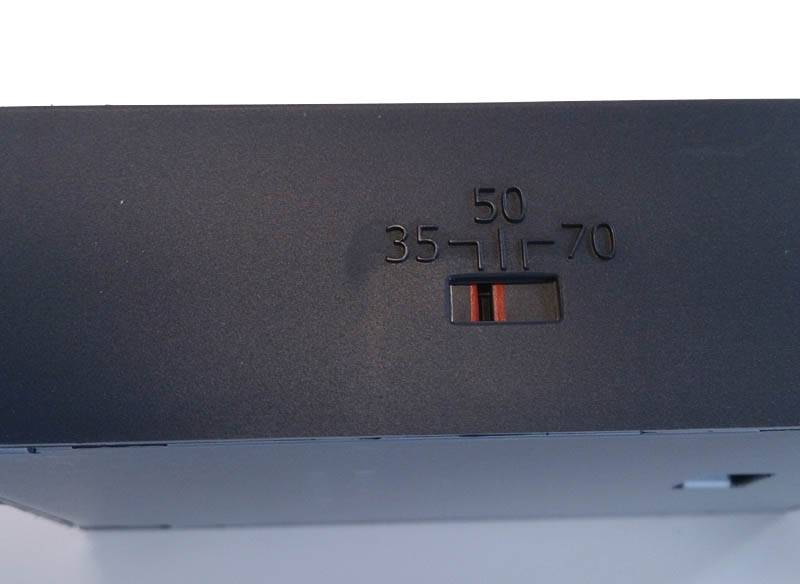

Rated Gear/Lamp Power |
35-70 |
|
Line voltage |
220-240V |
|
Line Frequency |
50/60 Hz |
|
Housing |
/C |
|
Suitable for outdoor use? |
new |
|
alive. 90% overall T housing |
40000 hr |
Operating properties
|
Automatic restart |
Yes |
|
Ignition switch-off time |
19 minutes |
|
ignition voltage |
3.0 (min), 5.0 (max) kV |
|
Safe Mains Voltage Range (AC) |
180-264V |
|
Functional netsp. range (AC) |
198-254V |
|
min. operating mains voltage |
198 (min) V |
|
Peak starting current |
8 (max) A |
|
Start-up current duration |
10 ms |
|
Earth leakage current |
0.25 (max) mA |
|
Lamp Power Tolerance |
-3%/+3% |
|
Power factor 100% ed. prob. |
0.95 - |
|
skip security 320 VAC |
48 hours |
|
skip security 350 VAC |
2 hours |
|
skip security 400 VAC |
5 minutes |
|
max. number of ballasts on MCB |
58 x |
|
Hum and noise level |
20 dB(A) |
Cabling Details
|
Cable cap. exit mutual |
160 pF |
|
Connector type |
GST 18i3 Male w/o Lock |
|
max. cable length device/lamp |
2 m |
System properties on VSA
|
Lamp power on CDM |
39-73 |
|
Power loss on CDM |
5-7 |
Temperature characteristics
|
Active temperature protection |
Yes |
|
F mark |
Yes |
|
Specified T-housing |
80 C |
|
Reach T-environment |
-20 (min), 45 (max) C |
|
Reach T-Storage |
-25 (min), 80 (max) C |

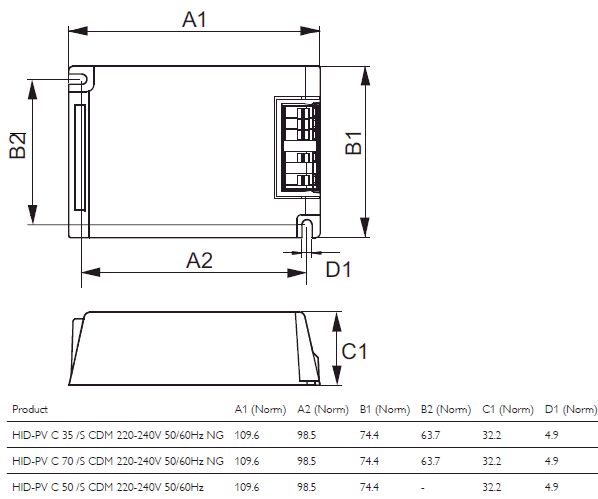

Dimensions in mm.
|
Length A1 |
162.2mm |
|
Distance mounting holes A2 |
143.0mm |
|
Width B1 |
82.9mm |
|
Height C1 |
32.4mm |
|
Mounting hole diameter D1 |
4.8mm |
Power & Application Features
|
EMI 9kHz – 300MHz |
CISPR 15 ed 7.2 |
|
Safety standard |
EN 61347-2-12 and 2-1 |
|
Harmonic Current Distortion |
IEC 61000-3-2 |
|
Vibration resistance |
IEC 68-2-6 Fc |
|
Shock resistance |
IEC 68-2-29 Eb |
|
Humidity |
IEC 60928 clause 13 |
|
Approval Marks |
ENEC / VDE / C-tick / EMC / CQC / HEE / CE |
|
CE marking |
Yes |
|
ENEC certificate |
Yes |
|
VDE certificate |
Yes |
|
VDE-EMV certificate |
new |
|
Surge Protection |
EN61547 (LL 2kV, LG 4kV) |
|
CB certificate |
Yes |
Product data
|
Order code |
233145 00 |
|
EOC product code |
871829123314500 |
|
Product name |
HID-AV C 35-70 /C CDM 220-240V 50/60Hz |
|
Order product name |
HID-AV C 35-70 /C CDM 220-240V 50/60Hz |
|
Quantity per pack |
1 |
|
Packing quantity |
12 |
|
Packaging per outer box |
12 |
|
Barcode on product |
8718291233145 |
|
Barcode on outer box |
8718291233152 |
|
Logistic code(s) |
913700684166 |
|
Net weight per piece |
0.342 kg |
