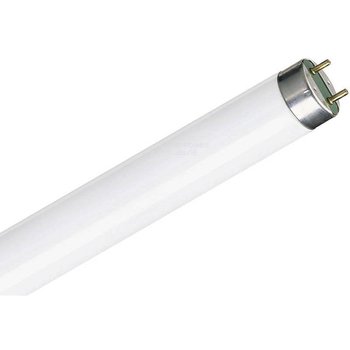

Widely used and most well-known 26 mm fluorescent tube with excellent light quality and long life, on average more than 5 years at office hours.
The lifetime of the PHILIPS MASTER TL-D super 80 58W / 865 is 1.5 times longer than the standard color TL-D and the light output is 30% higher with the same energy (86 Lm / Watt) Also during this time the light intensity remains higher as the standard fluorescent lamp. The Philips TL-D has a 50% failure rate of 20,000 hours on HF ballast equipment (12,000 hours with standard ballast) This PHILIPS TL-D lamp with G13 lamp base is dimmable with a suitable ballast.
Available in light colors:
827 (Extra warm white), 830 (Warm white), 840 (bright white) and 865 (daylight)
Defective PHILIPS MASTER TL-D super 80 58W / 865 lamp is easy to recognize due to the black breakdown in the lamp at the end on one side! If this is the case on two sides, the ballast is often broken. Usually the lamp slowly starts to give less light from 16,000 to 18,000 hours. May be wise to replace in time due to the risk of failure of the electronic ballast. Due to wear and tear of the lamp, it will consume more power which will charge the VSA.
Lamp base information PHILIPS MASTER TL-D super 80 58W / 865
|lamp base G13||T8 lamp with G13 lamp base||lamp holder G13|
Changing PHILIPS MASTER TL-D super 80 58W / 865 with 2 pins on each side can be done by turning the fitting 90 degrees to the left or right with a gentle rotational movement. De-energisation of the luminaire is necessary to make the lamp light, but also safer.
Environmental aspects of the PHILIPS MASTER TL-D super 80 58W / 865 lamp.
All TL-D lamps fall under Energy efficiency label (EEL) A or B. The mercury content of the PHILIPS MASTER TL-D super 80 58W / 865 lamps is only 2 mg. Below the various TLD lamps and their energy label.
Application PHILIPS MASTER TL-D super 80 58W / 865
-Suitable for various' TL'-D fixtures, often found in schools, offices, shops, factory halls etc.
Benefits PHILIPS MASTER TL-D super 80 58W / 865
Covered with special fluorescent coating for better color rendering (Ra> 80)
- 1.5 times longer life than the standard color TL-D lamps
- Higher efficiency with HF ballasts
- 30% more light for the same amount of energy than standard TLD lamps
- Creates a color climate ranging from warm white to cool daylight
|Energy Efficiency Label (EEL):||A|
|Color rendering (Ra):||-|
|Luminous flux (lumens):|
|Lm / W:|
|Lamp Current (mA):||-|
|EM Luminance (cd / cm2):||-|
|Product Barcode (EAN):|
|Barcode outside box:|
|Packing outer box (number):||-|
|Design temperature (C):||-|
|Splinter free (HACCP):||no|
|AC input voltage (V):|
