• Dimensions in mm.
Lamp length without pins 109.7 (max) mm
Insertion depth B 128.0 (max) mm
Total length C 142.9 (max) mm
Bulb diameter D 27.1 (max) mm
Bulb diameter D1 27.1 (max) mm
• Product data
Order code 950369 70
EOC product code 871150095036970

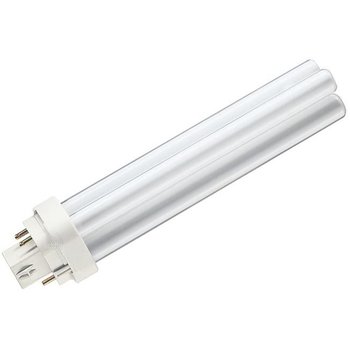

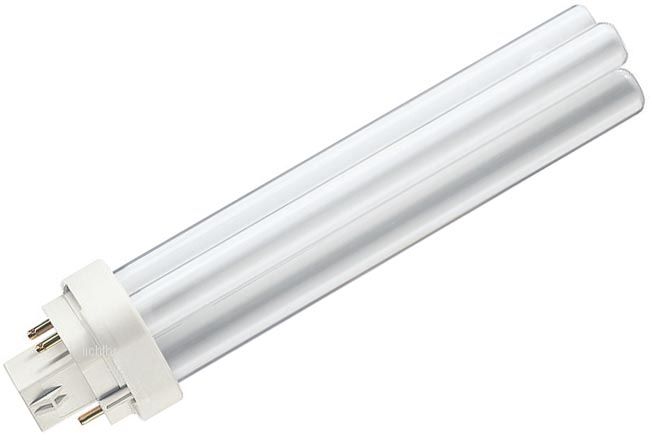

Product name MASTER PL-C Xtra 18W/840/4P 1CT
Order product name MASTER PL-C Xtra 18W/840/4P 1CT/5X10CC
Quantity per package 1
Packing quantity 5X10CC
Packaging per outer box 50
Barcode on product 8711500950369
Barcode on intermediate packaging - EAN2 8711500950376
Barcode on outer box 8711500950383
Logistic code(s) 927906584014
ILCOS code FSQ-18/40/1B-E-G24q=2
Net weight per piece 55,300 gr
• General characteristics
Lamp base G24q-2
Lamp base information 4P
Lifetime to 50% failure conv 16000 hr
Lifetime 50% ballast failure 33000 hr
Lifetime 50% failure HFB 9000 hr
live. 10% excl. cold EL,3h 6000 hr
live. 10% excl. warm EL,3h 20000 hr
Lifetime to 10% failure EM 12000 hr
LSF HF preheat 20kh v spec,3h 90 %
LSF HFvoorvrw 16kh acc spec,3h 94 %
LSF HF preheat 12kh v spec,3h 95 %
LSF HF fwd 8kh acc spec,3h 96%
LSF HF fwd 6kh acc spec,3h 97%
LSF HF fwd 4kh vlg spec,3h 98 %
LSF HF fwd 2kh vlg spec,3h 99 %
• Technical Light Properties
Color code 840 [CCT or 4000K]
Color rendering 82 Ra8
Light color Cool White
Color temperature 4000 K
Chromaticity coordinate X 380 -
Chromaticity coordinate Y 380 -
Luminous efficiency according to specs HF 25 °C 67 Lm/W
Luminous efficiency according to specs EM 25 °C 67 Lm/W
Lm-beh.fact HF 20kh acc specs 78 %
Lm-beh.fact HF 16kh acc specs 79 %
Lm-beh.fact HF 12kh acc specs 81 %
Lm-beh.fact HF 8kh acc specs 84 %
Lm-beh.fact HF 6kh acc specs 86 %
Lm-beh.fact HF 4kh acc specs 88 %
Lm-beh.fact HF 2kh acc specs 92 %
Luminous flux EM 25 °C, according to specs 1200 Lm
Light current EL 25 °C, according to specs 1200 Lm
Luminous flux EL 25 °C, nominal 1200 Lm
Luminous flux EM 25 °C, nominal 1200 Lm
Design temperature 28 C
• Electrical characteristics
Nominal lamp power 18 W
Lamp voltage electronic 25 ° C 80 V
Lamp current ballast 25°C 0.230 A
Dimmable/Adjustable Yes
Lamp current EM 25 °C 0.220 A
Lamp power EM 25 °C, according to specs18.0 W
Lamp power EL 25 °C, according to specs 17.6 W
Lamp power EL 25 °C, nominal 17 W
Lamp power EM 25 °C, nominal 17 W
Lamp voltage EM 25 °C 100 V
