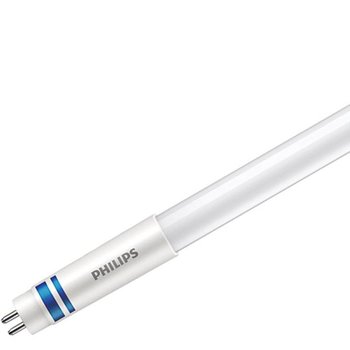

LED replacement for the Philips Master TL5 80w / 840 or Osram Lumilux T5 80W / 840
Energy class A ++ LEDtube. Renovation replacement for existing T5 lamps in installations with electronic ballasts and equipped with G5 lamp base. Up to 3x longer life compared to the TL5 lamps! Philips MASTER LEDtube UO are more robust and more resistant to cold environments than normal fluorescent tubes. You also no longer suffer from humming or blinking. The light output is approximately 150 Lumen / watt which is 30% higher than most other LED tubes! This Master LED tube from the UO series is a perfect solution for the TL5 fluorescent lamp. The color rendering (Ra) is higher than 85. Light distribution of 150 degrees.
Lifespan. Philips MASTER UO LEDtubes have a lifespan of 50,000 hours. Until this lifespan 70% lumen retention.
| Cap-Base |
G5 [G5]
|
| Nominal Lifetime (Nom) |
50000 h
|
| Switching Cycle |
50000X
|
| B50L70 |
50000 h
|
| Color Code |
830 [CCT or 3000K]
|
| Luminous Flux (Nom) |
5200 lm
|
| Luminous Flux (Rated) (Nom) |
5200 lm
|
| Correlated Color Temperature (Nom) |
3000 K.
|
| Color Consistency |
<6
|
| Color Rendering Index (Nom) |
83
|
| LLMF At End Of Nominal Lifetime (Nom) |
70%
|
| Input Frequency |
40000-75000 Hz
|
| Power (Rated) (Nom) |
36 W.
|
| Lamp Current (Max) |
750 mA
|
| Lamp Current (Min) |
550 mA
|
| Starting Time (Nom) |
0.5 s
|
| Warm Up Time to 60% Light (Nom) |
0.5 s
|
| Voltage (Nom) |
65-75 V.
|
| T-Ambient (Max) |
45 ° C
|
| T-Ambient (Min) |
-20 ° C
|
| T-Storage (Max) |
65 ° C
|
| T-Storage (Min) |
-40 ° C
|
| Dimmable |
No.
|
| Product Length |
1500 mm
|
| Energy Saving Product |
Yes
|
| Energy Efficiency Label (EEL) |
A ++
|
| Approval Marks |
TUV CE marking RoHS compliance KEMA Approval certificate |
| Energy Consumption kWh / 1000 h |
42 kWh
|
| Full product code |
871869670599500
|
| Order product name |
MAS LEDtube HF 1500mm UO 36W 830 T5
|
| EAN / UPC - Product |
8718696705995
|
| Order code |
929001346102
|
| Numerator - Quantity Per Pack |
1
|
| Numerator - Packs per outer box |
10
|
| Material No. (12NC) |
929001346102
|
| Net Weight (Piece) |
0.170 kg
|
