General information
|
Lamp base |
GU6.5 [GU6.5] |
|
Use mode |
UNIVERSAL [free] |
|
Service life up to 5% failure (nom.) |
9000 h |
|
Service life up to 10% failure (nom.) |
10000 h |
|
Lifetime up to 20% failure (nom.) |
12000 h |
|
Lifetime up to 50% failure (nom.) |
15000 h |
|
ANSI code HID |
C156 / E |
Requirements for luminaire design
|
Color code |
830 [CCT or 3000K] |
|
Luminous flux (specified) (min.) |
1620 lm |
|
Luminous flux (specified) (nom.) |
1800 lm |
|
Color indication |
Warm white (WW) |
|
Lumen maintenance 1000 hours (nom.) |
91% |
|
Lumen maintenance 12000 hours (nom.) |
77% |
|
Lumen maintenance 10,000 hours (nom.) |
78% |
|
Lumen maintenance 2000 hours (nom.) |
87% |
|
Lumen maintenance 4000 hours (nom.) |
84% |
|
Lumen maintenance 5000 hours (nom.) |
83% |
|
Chromaticity coordinate X (nom.) |
0.436 |
|
Chromaticity coordinate Y (nom.) |
0.396 |
|
Correlated color temperature (nom.) |
3000 K |
|
Light output lamp (specified) (nom.) |
90 lm / W |
|
Color rendering index (min.) |
81 |
|
Color rendering index (nom.) |
84 |
Operating and electrical data
|
Power (Rated) (Nom) |
20.0 W |
|
Lamp current at start-up (max.) |
0.5 A |
|
Re-ignition time (minutes) (max.) |
15 min |
|
Ignition time (max.) |
30 s |
|
Voltage (Max) |
100 V |
|
Voltage (Min) |
90 V |
|
Voltage (Nom) |
95 V |
Control systems and dimmers
|
Dimmable |
No |
|
Start-up time 90% (max.) |
3 min |
Mechanical properties and Housing
|
Balloon finish |
Clear (CL) |
Approval and Application
|
Energy efficiency label (EEL) |
A + |
|
Mercury content (Hg) (nom.) |
3.5 mg |
|
Energy consumption kWh / 1000h |
22 kWh |
UV
|
Pet (Niosh) (min.) |
8 h / 500lx |
|
Color damage factor D / fc (max.) |
0.5 |
Luminaire Design Requirements
|
Balloon temperature (max.) |
380 ° C |
|
Lamp foot temperature (max.) |
250 ° C |
Product data
|
Full product code |
872790089083900 |
|
Product name for order |

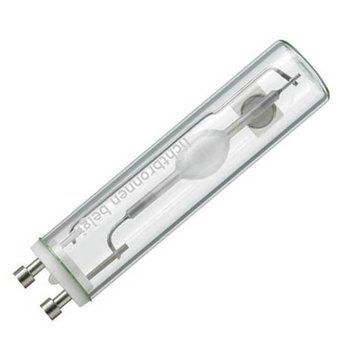

MASTERColour CDM-Tm Mini GU6.5 20W / 830 1CT / 12 |
|
EAN / UPC - Product |
8727900890839 |
|
Order code |
89083900 |
|
Local Code |
CDMTM20WGU65 |
|
Numerator - Number per pack |
1 |
|
Numerator - Boxes per outer box |
12 |
|
Material no. (12NC) |
928183505130 |
|
Net weight (per piece) |
0.007 kg |
|
ILCOS Code |
MT / UB-20/830-H-GU6.5-13.3 / 52 |
