| Lamp base |
G23 [G23]
|
| Nominal Lifetime (Nom) |
30000 h
|
| Switching cycle |
50,000X
|
| B50L70 |
30000 h
|
| Color coded |
830 [CCT or 3000K]
|
| Beam angle (nom.) |
120 °
|
| Luminous flux (nom.) |
520 lm
|
| Luminous flux (rated) (nom.) |
520 lm
|
| Specified beam width |
120 °
|
| Correlated Color Temperature (Nom) |
3000 K.
|
| Color consistency |
<6
|
| Color Rendering Index (Nom) |
82
|
| Llmf at end of nominal life (nom.) |
70%
|
| Input frequency |
50 to 60 Hz
|
| Power (Rated) (Nom) |
5 W.
|
| Lamp current (nom.) |
25 mA
|
| Start-up time (nom.) |
0.5 s
|
| Warm-up time up to 60% light output (nom.) |
0.5 s
|
| Power Factor (nom.) |
0.9
|
| Voltage (nom.) |
220-240 V.
|
| T environment (max.) |
45 ° C
|
| T environment (min.) |
-20 ° C
|
| T storage (max.) |
65 ° C
|
| T storage (min.) |
-40 ° C
|
| T-housing maximum (nom.) |
83 ° C
|
| Dimmable |
No
|
| Energy-saving product |
Yes
|
| Energy efficiency label (EEL) |
A +
|
| Approval marks |
CE marking RoHS compliance KEMA Approval Certificate |
| Energy consumption kWh / 1000 hours |
7 kWh
|
| Full product key |
871869959666800
|
| Product name for order |

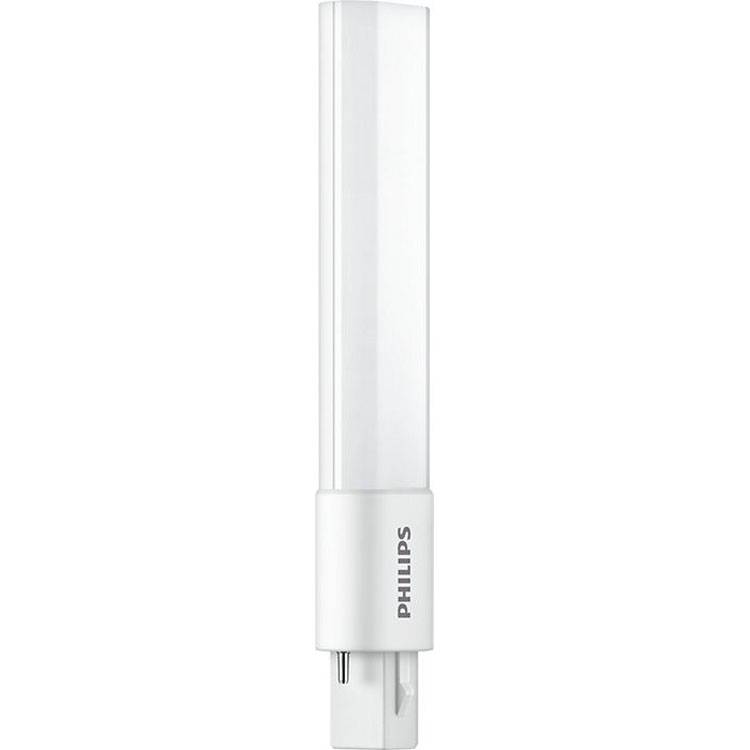

CorePro LED PLS 5W 830 2P G23
|
| EAN / UPC - Product |
8718699596668
|
| Order code |
59666800
|
| Local Code |
59666800
|
| Numerator - Quantity per pack |
1
|
| Numerator - Boxes per outer box |
20
|
| Material no. (12NC) |
929001926302
|
| Net weight (each) |
0.043 kg
|
