They come with 4 icons with the following arrow directions: left, right, up and down. You can stick the icon on the fixture that applies to your situation
Continuous
The Continuous function (maintained) is most commonly used. The emergency lighting is on continuously and in the event of a power failure, the emergency lighting automatically switches on the 3-hour battery. This function is used as an escape route marking where an escape route or emergency exit is continuously marked. The Continuous function can be set by connecting the fixed power supply to the emergency power supply in the fixture using a small bridge.
Stand-by
The Standby function (non-maintained) is not lit by default and is only switched on in the event of a power failure. The emergency lighting uses the internal 3-hour battery. The Stand-by function can be set by only supplying the emergency power supply with voltage.

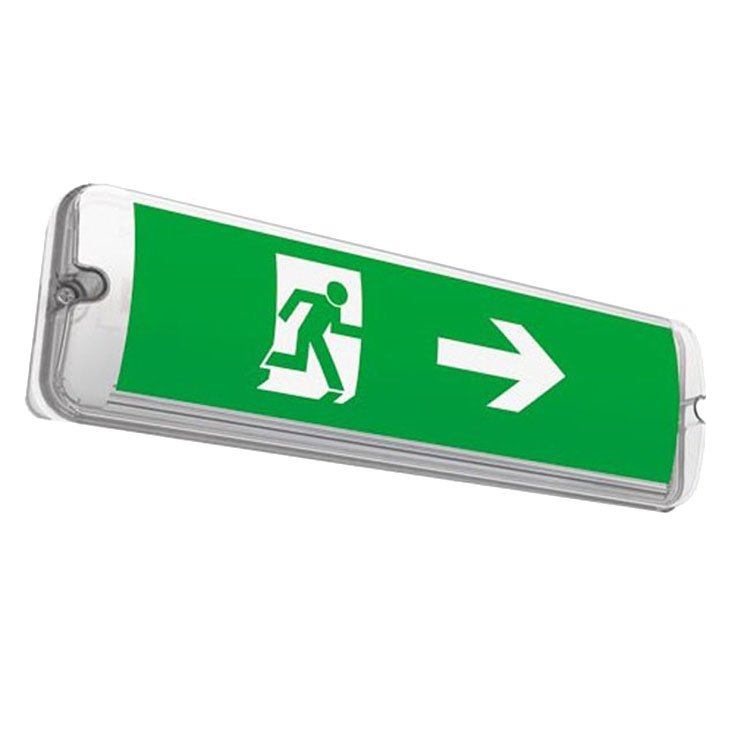

The LED Emergency Lighting Waterproof Surface-mounted is made of hardened white plastic and has the protection degree IP65. The fixture is easy to attach by simply screwing the housing to the desired surface. The light source has a power of 4 watts, a light color of 865 (daylight) and a color temperature of 6500K. The light intensity is therefore 320 lumens. The certificates CE | ENEC21 | CNBOP | PT apply to this fixture. The fixture is supplied including the pictograms below.
Specifications
Burning hours 45000
Length mm 352
Width mm 117
Height mm 73

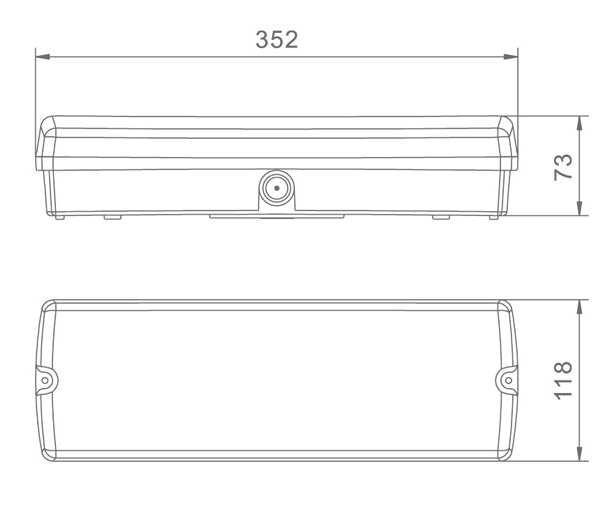

L x W x H 352X118X73
Degree beam D 135
Dimmable No
Protection class IP65
Lamp color 860 Daylight
Color temperature (K) 6000K
Luminous intensity (lm) 320
Wattage 4W
Voltage 230V
Note This product has a 2-year warranty.
Energy label A
Version Hardened plastic
