General characteristics
Technical Light Properties
|
Color code |
170 |
|
light color |
Green |
|
Luminous flux EM 25 °C, according to specs |
4300 Lm |
|
Luminous flux EM 25 °C, nominal |
4300 Lm |
|
Lm-beh.fact EM 2kh according to specs |
55 % |
|
Design temperature |
25 C |
|
Chromaticity coordinate X |
246 - |
|
Chromaticity coordinate Y |
606 - |
Electrical characteristics
|
Rated lamp power |
36 W |
|
Lamp power EM 25 °C, nominal |
36 W |
|
Lamp power EM 25 °C, according to specs |
36.0 W |
|
Lamp voltage EM 25 °C |
103 V |
|
Lamp current EM 25 °C |
0.440 A |
|
Dimmable/Adjustable |
Yes |
Environmental properties
|
Energy efficiency label(EEL) |
A+ |
|
Mercury content (Hg) |
13.0mg |
|
Energy consumption kWh/1000h |
42 kWh |
Dimensions in mm.
|
Lamp length without pins |
1199.4 (max) mm |
|
Insertion depth B |
1204.1 (min), 1206.5 (max) mm |
|
Total length C |
1213.6 (max) mm |
|
Bulb diameter D |
28.0 (max) mm |
Product data
|
Order code |
643001 40 |
|
EOC product code |
871150064300140 |
|
Product name |

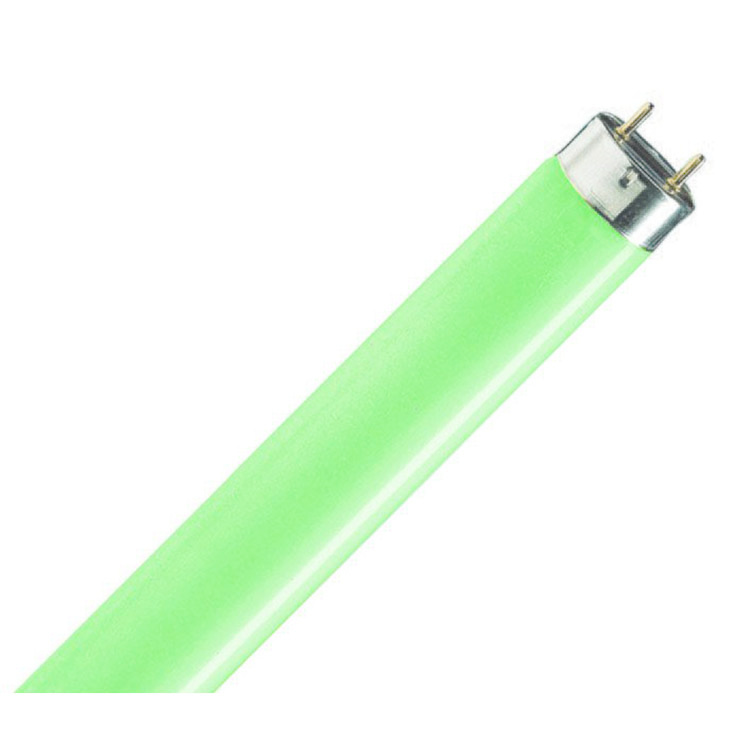

TL-D Colored 36W Green 1SL |
|
Order product name |
TL-D Colored 36W Green 1SL/25 |
|
Quantity per pack |
1 |
|
Packing quantity |
25 |
|
Packs per outer box |
25 |
|
Barcode on product |
8711500643001 |
|
Barcode on outer box |
8711500643018 |
|
Logistic code(s) |
928048501705 |
|
Net weight per piece |
203,400 gr |
|
Successor |
