General characteristics
| lamp base |
G13 [Medium Two Pin Fluorescence] |
| lamp shape |
T8 [26mm] |
| Lifetime up to 10% failure EM |
12000 hr |
| Lifetime up to 50% failure conv |
15000 hrs |
Technical Light Properties
| Color code |
180 |
| light color |
Blue |
| Luminous flux EM 25 °C, according to specs |
400 Lm |
| Luminous flux EM 25 °C, nominal |
400 Lm |
| Lm-beh.fact EM 2kh according to specs |
85 % |
| Design temperature |
25 C |
| Chromaticity coordinate X |
157 - |
| Chromaticity coordinate Y |
75 - |
Electrical characteristics
| Rated lamp power |
18 W |
| Lamp power EM 25 °C, nominal |
18 W |
| Lamp power EM 25 °C, according to specs |
18.0 W |
| Lamp voltage EM 25 °C |
59 V |
| Lamp current EM 25 °C |
0.360 A |
| Dimmable/Adjustable |
Yes |
Environmental properties
| Energy efficiency label(EEL) |
C |
| Mercury content (Hg) |
13.0mg |
| Energy consumption kWh/1000h |
23 kWh |
Dimensions in mm.
| Lamp length without pins |
589.8 (max) mm |
| Insertion depth B |
594.5 (min), 596.9 (max) mm |
| Total length C |
604.0 (max) mm |
| Bulb diameter D |
28.0 (max) mm |
Product data
| Order code |
726902 40 |
| EOC product code |
8711500722690240 |
| Product name |

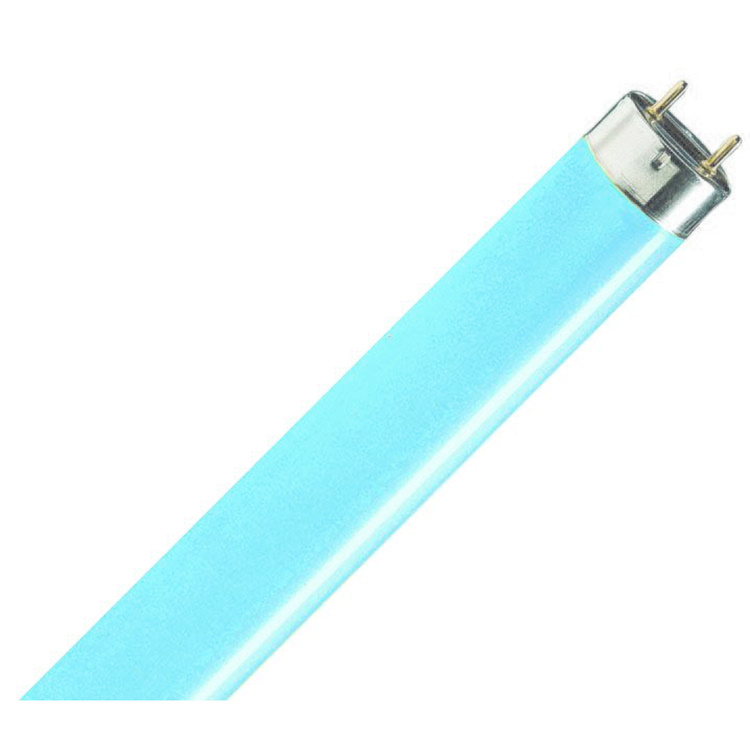

TL-D Colored 18W Blue 1SL |
| Order product name |
TL-D Colored 18W Blue 1SL/25 |
| Quantity per pack |
1 |
| Packing quantity |
25 |
| Packs per outer box |
25 |
| Barcode on product |
8711500726902 |
| Barcode on outer box |
8711500726919 |
| Logistic code(s) |
928048001805 |
| Net weight per piece |
68,900 gr |
| Successor |
