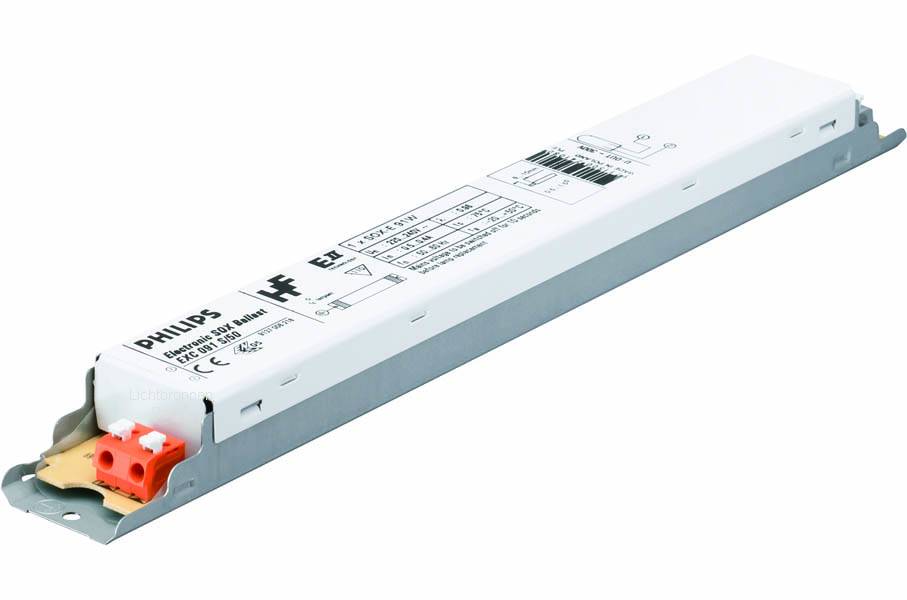

General characteristics
|
Application code |
EII |
|
Specified lamp type |
SOX-E |
|
Number of lamps according to specs. |
1 piece |
|
Nominal ballast/lamp power |
66 |
|
Line voltage |
220-240 V |
|
Line current |
0.30 A |
|
Line frequency |
50/60 Hz |
|
Housing |
L 280x39x28 |
|
IP classification luminaires |
20 |
|
Life 90% O.T. Housing |
50000 hr |
Operating properties
|
Automatic restart |
No |
|
Ignition cut-off time |
0.08 min |
|
ignition voltage |
0.5 (min), 1.0 (max) kV |
|
Operating frequency * |
45 kHz |
|
Safe AC Voltage Range |
-10%/+10% |
|
Functional AC range (AC) |
-8%/+6% |
|
Min. operating mains voltage |
180 (min) V |
|
Peak output voltage |
1000 (max) V |
|
Peak inrush current |
40 (max) A |
|
Inrush current duration |
0.15 ms |
|
Earth leakage current |
0.5 mA |
|
Lamp power tolerance |
-10%/+10% |
|
Power factor 100% outp. power. |
0.95 - |
|
Overvoltage protection 320 VAC |
48 hr |
|
Overvoltage protection 350 VAC |
2 hr |
|
Max. number of VSAs on MCB |
22 x |
|
Hum and noise level |
37 dB(A) |
Wiring data
|
Cable cap. output mutual |
1000 pF |
|
Connector type |
Insert |
|
Max. cable length app./lamp |
10 m |
|
Strip length |
8.0 mm |
|
Drd. cross section VSA contacts |
0.50-2.50 mm2 |
System Properties on VSA
|
Spec. lamp power on SOX-E |
66 |
|
System Power on SOX-E |
73.0 |
|
Lamp power on SOX-E |
67.0 |
|
Loss of capital on SOX-E |
6.0 |
Temperature characteristics
|
Specified T-housing |
75 C |
|
Shut-off T-housing |
75 (min) C |
|
Reach T-environment |
-20 (min), 50 (max) C |
|
Reach T-storage |
-40 (min), 80 (max) C |

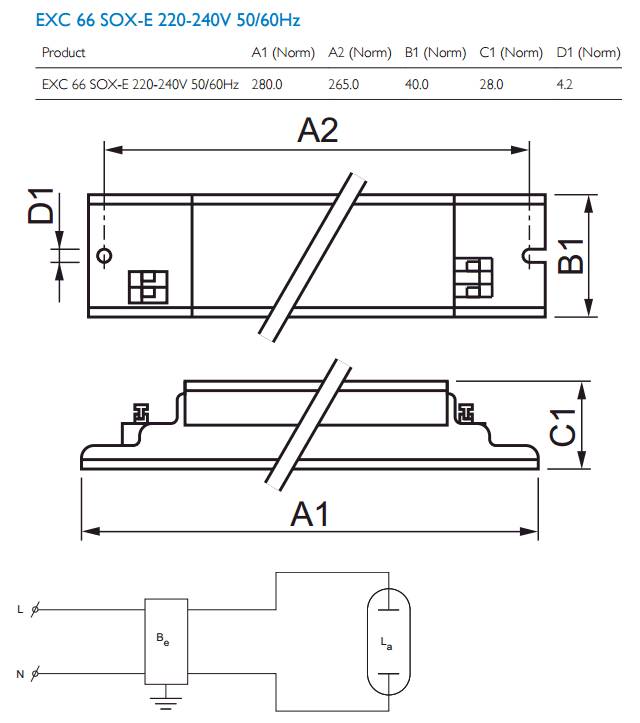

Dimensions in mm.
|
Length A1 |
280.0 mm |
|
Distance mounting holes A2 |
265.0 mm |
|
Width B1 |
40.0 mm |
|
Height C1 |
28.0 mm |
|
Mounting hole diameter D1 |
4.2 mm |
Power & Application Features
|
EMI 9 kHz – 300 MHz |
CISPR 15 ed 7.1 |
|
Safety standard |
EN 60928, 60926 |
|
Quality standard |
ISO 9000:2000 |
|
Environmental standard |
ISO 14001 |
|
Harmonic current distortion |
EN 60555.2 |
|
Vibration resistance |
IEC 68-2-6 Fc |
|
Shock resistance |
IEC 68-2-29 Eb |
|
Humidity |
IEC 928-13 |
|
Approval marks |
ENEC |
|
CE marking |
Yes |
|
ENEC certificate |
Yes |
|
VDE certificate |
No |
|
VDE-EMV certificate |
No |
|
CB certificate |
Yes |

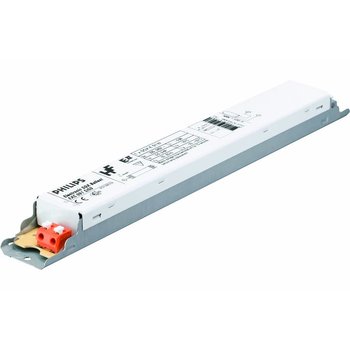

Product data
|
Order code |
062444 30 |
|
EOC product code |
871150006244430 |
|
Product name |
EXC 66 SOX-E 220-240V 50/60Hz |
|
Order product name |
EXC 66 SOX-E 220-240V 50/60Hz |
|
Quantity per pack |
1 |
|
Packaging quantity |
25 |
|
Packaging per outer box |
25 |
|
Barcode on product |
8711500062444 |
|
Barcode on outer box |
8711500062451 |
|
Logistic code(s) |
913700621766 |
|
Net weight per piece |
0.275 kg |
