| Cap-Base |
G13 [ Medium Bi-Pin Fluorescent]
|
| Main Application |
Industrial
|
| Nominal Lifetime (Nom) |
30000 h
|
| Switching Cycle |
200000X
|
| B50L70 |
30000 h
|
| Color Code |
865 [ CCT of 6500K]
|
| Beam Angle (Nom) |
240 °
|
| Luminous Flux (Nom) |
800 lm
|
| Luminous Flux (Rated) (Nom) |
800 lm
|
| Rated Beam Angle |
240 °
|
| Correlated Color Temperature (Nom) |
6500 K
|
| Color Consistency |
<6
|
| Color Rendering Index (Nom) |
80
|
| LLMF At End Of Nominal Lifetime (Nom) |
70 %
|
| Input Frequency |
50 to 60 Hz
|
| Power (Rated) (Nom) |
8 W
|
| Lamp Current (Nom) |
74 mA
|
| Starting Time (Nom) |
0.5 s
|
| Warm Up Time To 60% Light (Nom) |
instant full light s
|
| Power Factor (Nom) |
0.9
|
| Voltage (Nom) |
220-240 V
|
| T-Ambient (Max) |
45 °C
|
| T-Ambient (Min) |
-20 °C
|
| T-Storage (Max) |
65 °C
|
| T-Storage (Min) |
-40 °C
|
| T-Case Maximum (Nom) |
56 °C
|
| Dimmable |
No
|
| Product Length |
600 mm
|
| Energy Saving Product |
Yes
|
| Suitable For Accent Lighting |
No
|
| Energy Efficiency Label (EEL) |
A+
|
| Approval Marks |
CE marking RoHS compliance KEMA Keur certificate |
| Energy Consumption kWh/1000 h |
8 kWh
|
| Full product code |
871869649279600
|
| Order product name |

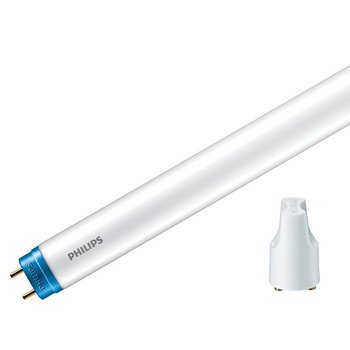

CorePro LEDtube 600mm 8W865 C G
|
| EAN/UPC - Product |
8718696492796
|
| Order code |
929001173302
|
| Numerator - Quantity Per Pack |
1
|
| Numerator - Packs per outer box |
10
|
| Material Nr. (12NC) |
929001173302
|
| Net Weight (Piece) |
0.120 kg
|
